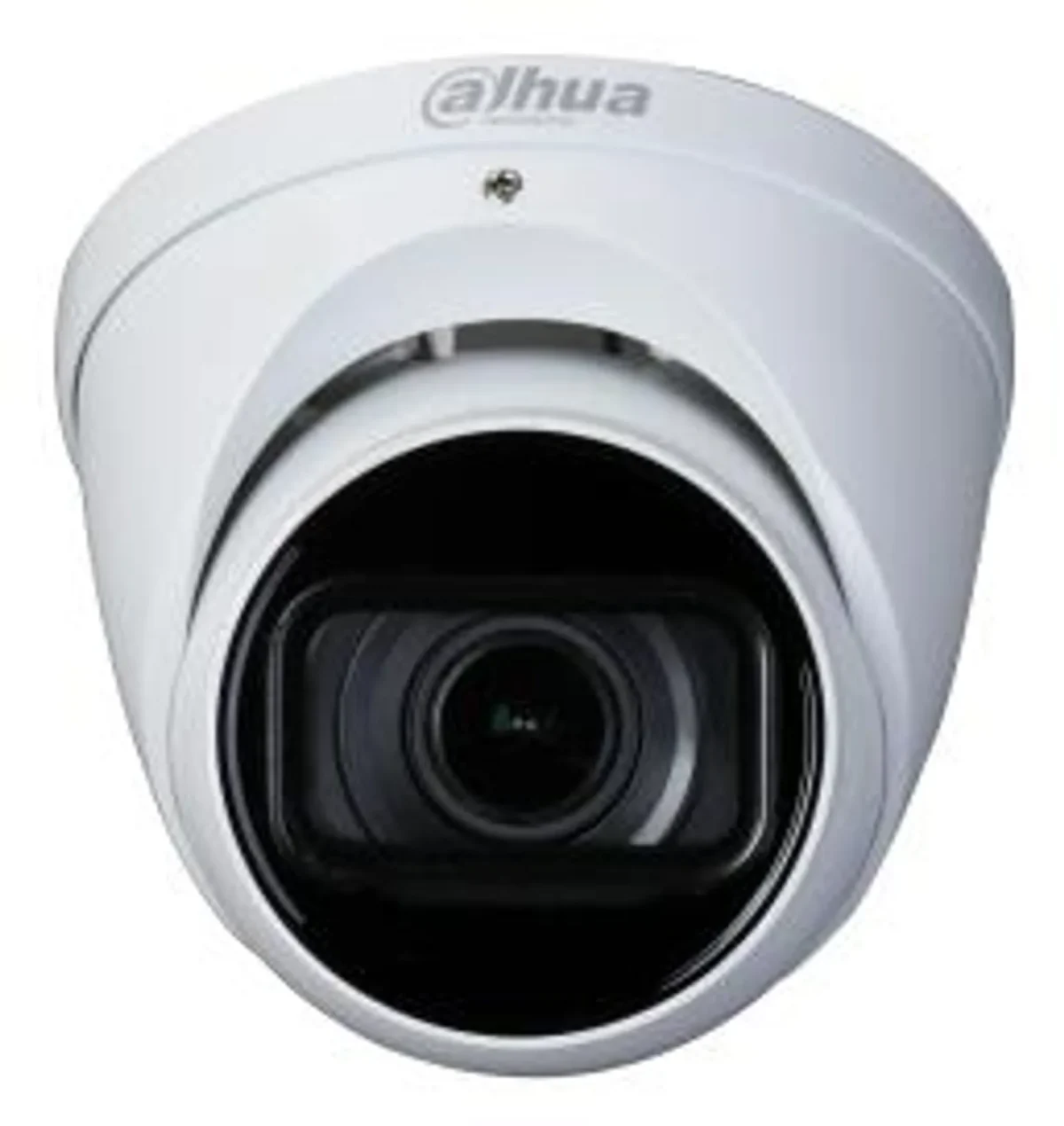

HDCVI Camera DAHUA HAC-HDW2501TZA-27135S2

Description

Overview

The Dahua HDCVI HAC-HDW2501TZA-27135S2 is a 5MP surveillance camera that records sharp video at up to 25 frames per second. True WDR and 3D NR keep the picture clear in difficult lighting and low-light conditions.

Key Features and Benefits

• Up to 25 fps at 5MP: smooth, detailed video.

• 120 dB true WDR: better visibility in difficult lighting.

• 3D NR: less image noise in the dark.

• Switchable CVI/CVBS/AHD/TVI output: works with a wide range of video surveillance systems.

• Built-in microphone: records audio along with video.

• 2.7–13.5 mm motorised lens: lets you adjust the field of view as needed.

• IR range up to 60 m: effective night-time surveillance.

• IP67: dust- and water-resistant, suitable for outdoor installation.

• 12V DC ±30% power supply: stable operation even when the voltage fluctuates within this range.

Specifications

Model: HAC-HDW2501T-Z-A-27135-S2
Resolution: 5MP
Frame rate: 25 fps
WDR: 120 dB
Noise reduction: 3D NR
Lens: motorised, 2.7–13.5 mm
IR range: up to 60 m
Protection rating: IP67
Power: 12V DC ±30%

Compatibility

Works with video surveillance systems that support CVI, CVBS, AHD or TVI. Not compatible with analogue systems that do not support these formats.

How to Use

1. Mount the camera where it has a clear view of the area.
2. Connect it to a 12V DC power supply.
3. Connect the video output to your DVR or monitor.
4. Select the output mode (CVI/CVBS/AHD/TVI) to match your system.
5. Adjust the field of view using the motorised lens.
6. Check the image quality and the audio from the built-in microphone.
7. Set up recording and notification options if required.

Why Choose This Camera

The Dahua HDCVI HAC-HDW2501TZA-27135S2 combines high image quality with reliability, making it a solid choice for security. True WDR and 3D NR deliver a clear picture even in challenging lighting. Its resistance to outdoor conditions and support for several video formats make it a versatile option for both business and home use.

Typical Applications

• Access control in offices.

• Retail store security.

• Monitoring residential complex grounds.

• Overseeing production processes in factories.

• Security in schools and other educational institutions.

• Monitoring public spaces and parks.

What’s in the Box

• Dahua HDCVI HAC-HDW2501TZA-27135S2 camera

• Mounting hardware

• User manual

About the Brand

Dahua is a leading manufacturer of video surveillance solutions, known for its innovative approach and high product quality. The company aims to create safer, smarter environments with advanced security and monitoring technology.
