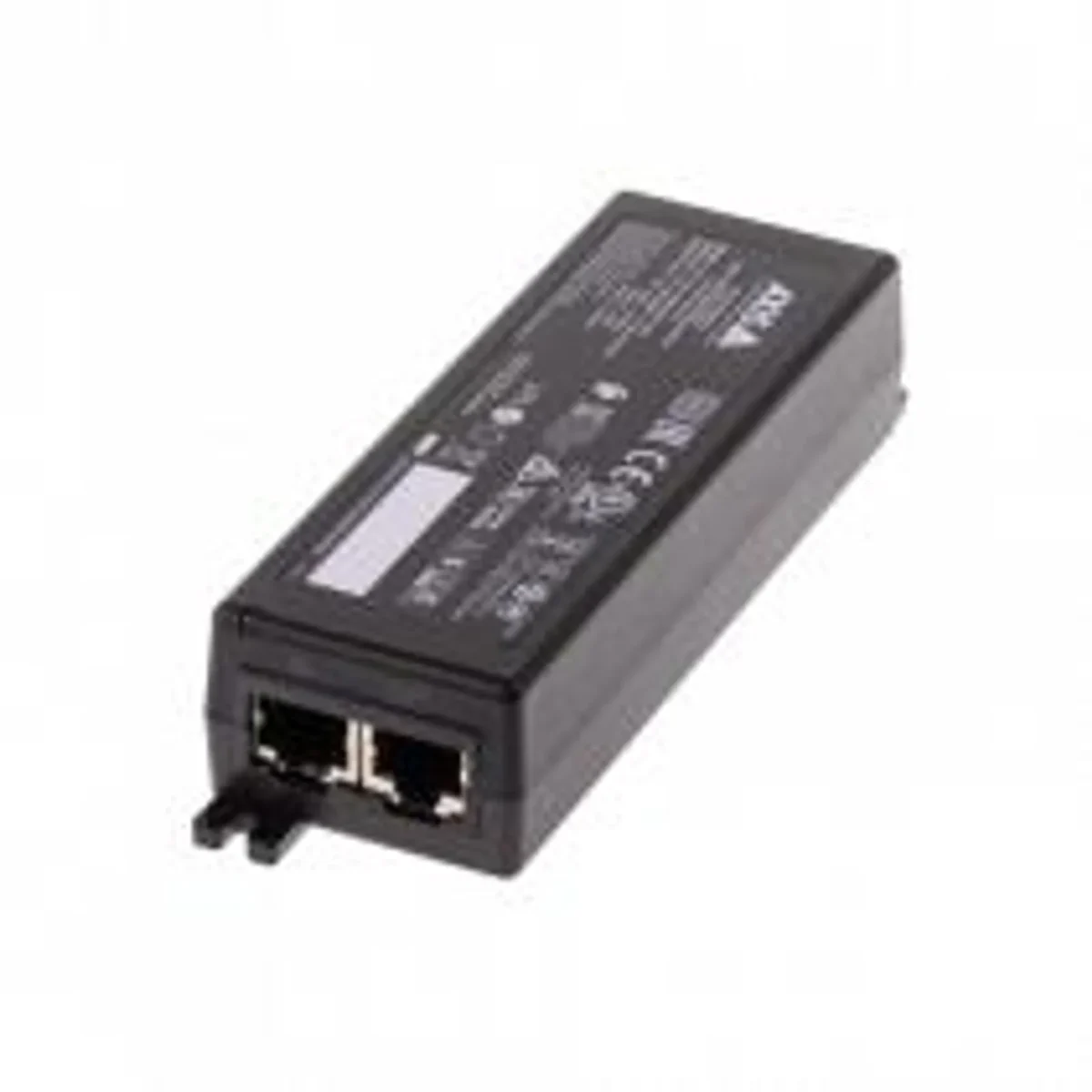

PoE Injector AXIS 30 W Midspan 02172-002

Description

The AXIS 30 W Midspan is a single-port PoE midspan that delivers up to 30 W to one network device. It complies with both IEEE 802.3af (15 W) and IEEE 802.3at (30 W), so it works with most Axis network products that have built-in PoE. Power over Ethernet is a simple, fast and cost-effective way to power network equipment. The midspan sends both power and data to a PoE-enabled device over a single network cable, so you can keep your existing Ethernet switches and cabling. For a network video product without built-in PoE, use the midspan together with a PoE splitter. Key features: IEEE 802.3af and IEEE 802.3at, 10/100/1000 Mbps, 100–240 V AC input, plug-and-play. The midspan automatically detects PoE and supplies inline power, and it has a local LED management display. Power: PoE+ IEEE 802.3at Type 2 Class 4. Input: 100–240 V AC, 47–63 Hz. Output: 56 V DC (max 30 W). Power consumption: 100 mW with no remote device connected and 36 W with a 30 W device connected. Connectors: shielded RJ45 and a C13 power connector. Wiring: data runs over pairs 1/2 and 3/6 for 10/100 Ethernet and over all four pairs for Gigabit Ethernet. Power is supplied over pairs 1/2 (negative) and 3/6 (positive). The black plastic casing is PVC-free and halogen-free. Front-panel LEDs show power and data connectivity for the port. You can mount the unit on a wall, on a shelf or on a DIN rail. Operating temperature: -20 °C to 40 °C (-4 °F to 104 °F) at 30 W and -20 °C to 55 °C (-4 °F to 131 °F) at 15 W. Humidity: up to 95% RH (non-condensing). Storage temperature: -40 °C to 75 °C (-40 °F to 167 °F). Model: POEA30U-1ATE. Safety approvals: IS 13252, UL 60950-1, UL 62368-1, CCC. EMC: EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24. Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78. Dimensions: 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in). Weight: 145 g (0.3 lb). In the box: installation guide and IEC-C13 mains cable. Optional accessory: AXIS T91A03 DIN Rail Clip. More accessories are listed at axis.com. Warranty: 3-year Axis warranty; see axis.com/warranty.
