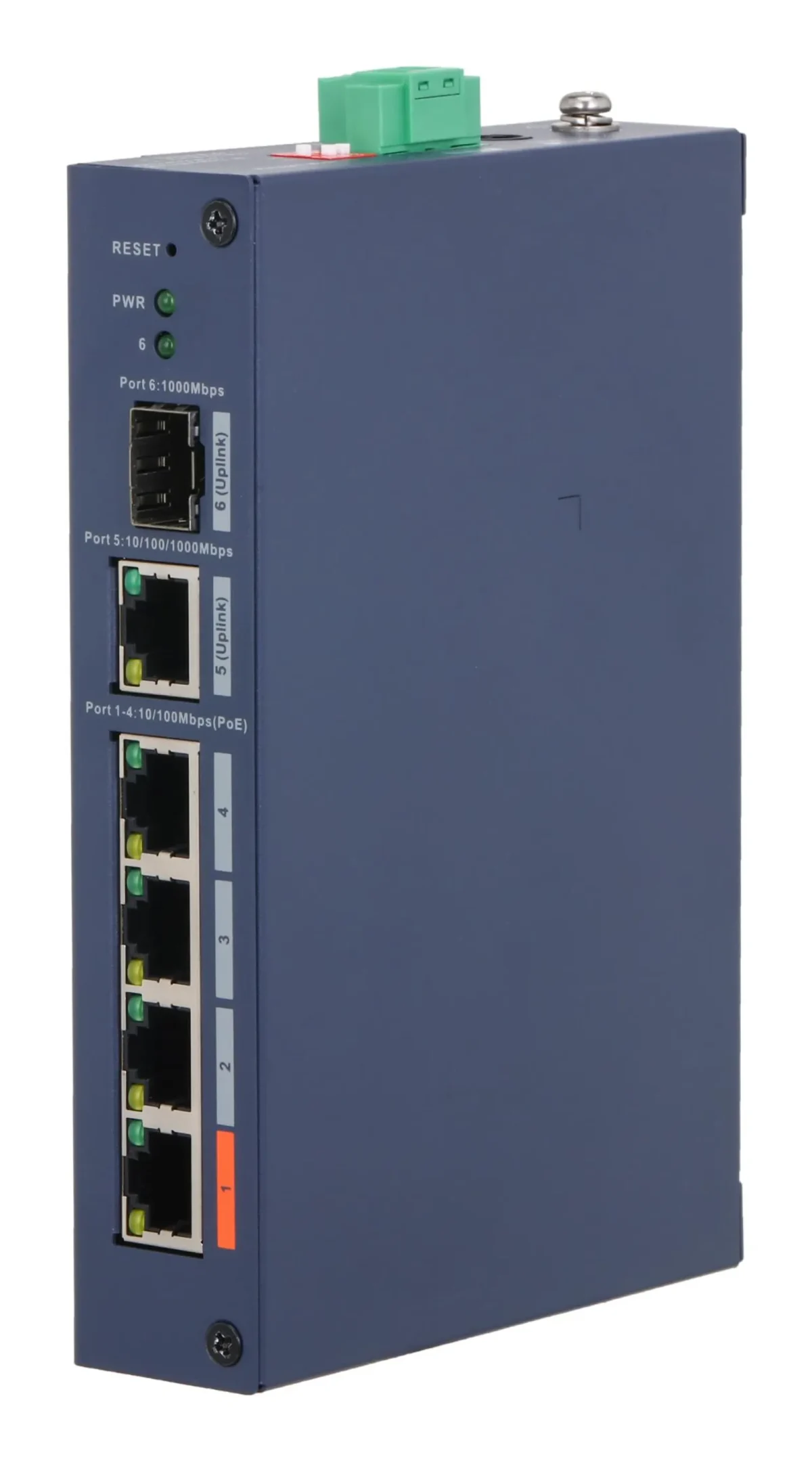

Switch DAHUA CHS4106-4ET-60

Description

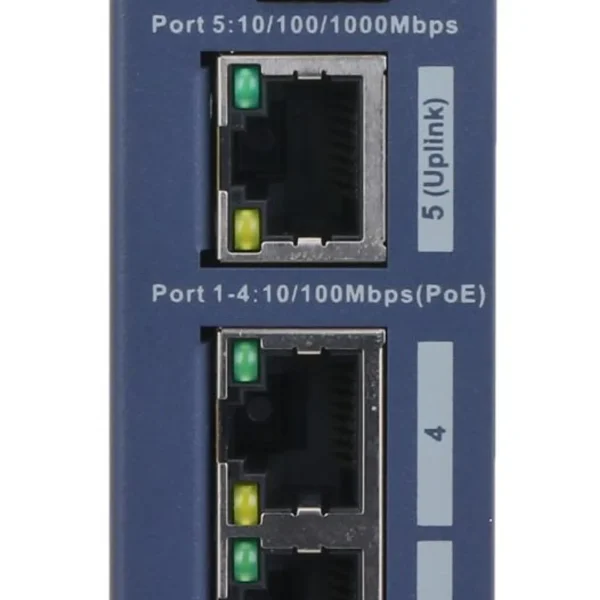

The DAHUA CHS4106-4ET-60 is a managed Layer 2 switch with four Fast Ethernet (10/100) RJ-45 ports, all with Power over Ethernet. Each port supplies up to 30 W, and the total PoE budget is 60 W, so connected devices can receive power over the same cable that carries their data. The switch supports the IEEE 802.3af and IEEE 802.3at standards.

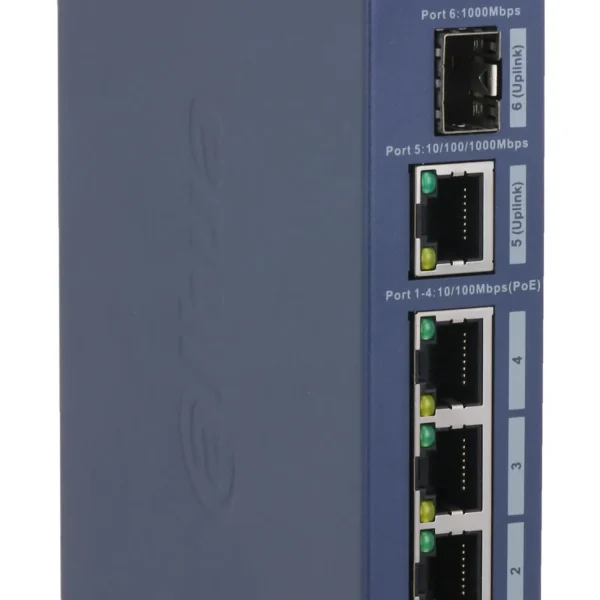

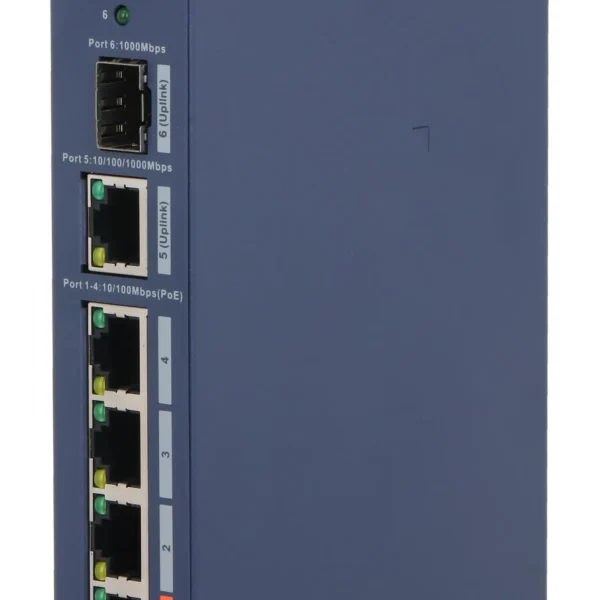

The switch also has one Gigabit Ethernet copper port and one SFP slot for a fibre uplink. Its switching capacity is 4.8 Gbit/s, the forwarding rate is 3.57 Mpps, and the address table holds 8,000 entries. It also supports the IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z standards.

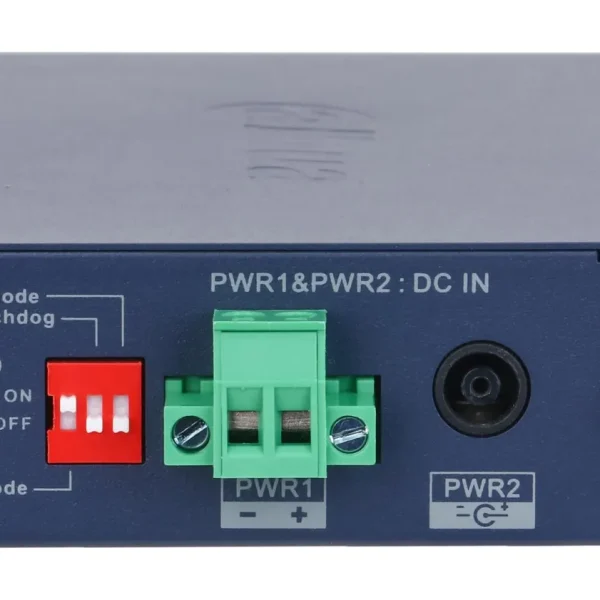

You can manage the switch through a web interface or from the cloud, and port mirroring is available. The blue desktop housing measures 110.4 × 154.3 × 30 mm (W × D × H), weighs 320 g and can also be mounted on a DIN rail. The switch runs on DC power, and a power supply is included.
